PCIe 5.0 SSD
The website is being upgraded and maintained now. Please go to 'Zhitai Jingdong Self-operated Flagship Store' or 'Zhitai Tmall Official Flagship Store' for product purchases. Sincere apologies for any inconvenience caused.
Storage Capacity
1. A brand new Xtacking® Architecture
The TiPro9000 SSD is equipped with YMTC Xtacking® 4.0 3D NAND Flash architecture to unleash its performance potential.
2. A New Path of Thrilling Speed
The TiPro9000 doubles sequential read/write speeds, reaching up to 14,000MB/s sequential read and 12,500MB/s sequential write, delivering an exhilarating gaming experience.
3. The New Era of 4K Read/Write
Experience 4K random read speeds of up to 2,000K IOPS (2TB/4TB)—a 135% improvement over its predecessor. Random write speeds soar to 1,800K IOPS, a 71% boost, taking system responsiveness and application download speeds to new heights.
4. SLC Cache+DRAM, Conquer Heavy Workloads
Featuring DRAM-base design paired with an intelligent SLC Cache mechanism, this SSD significantly boosts read/write and data interaction speeds, effortlessly handling high-load, multitasking scenarios.

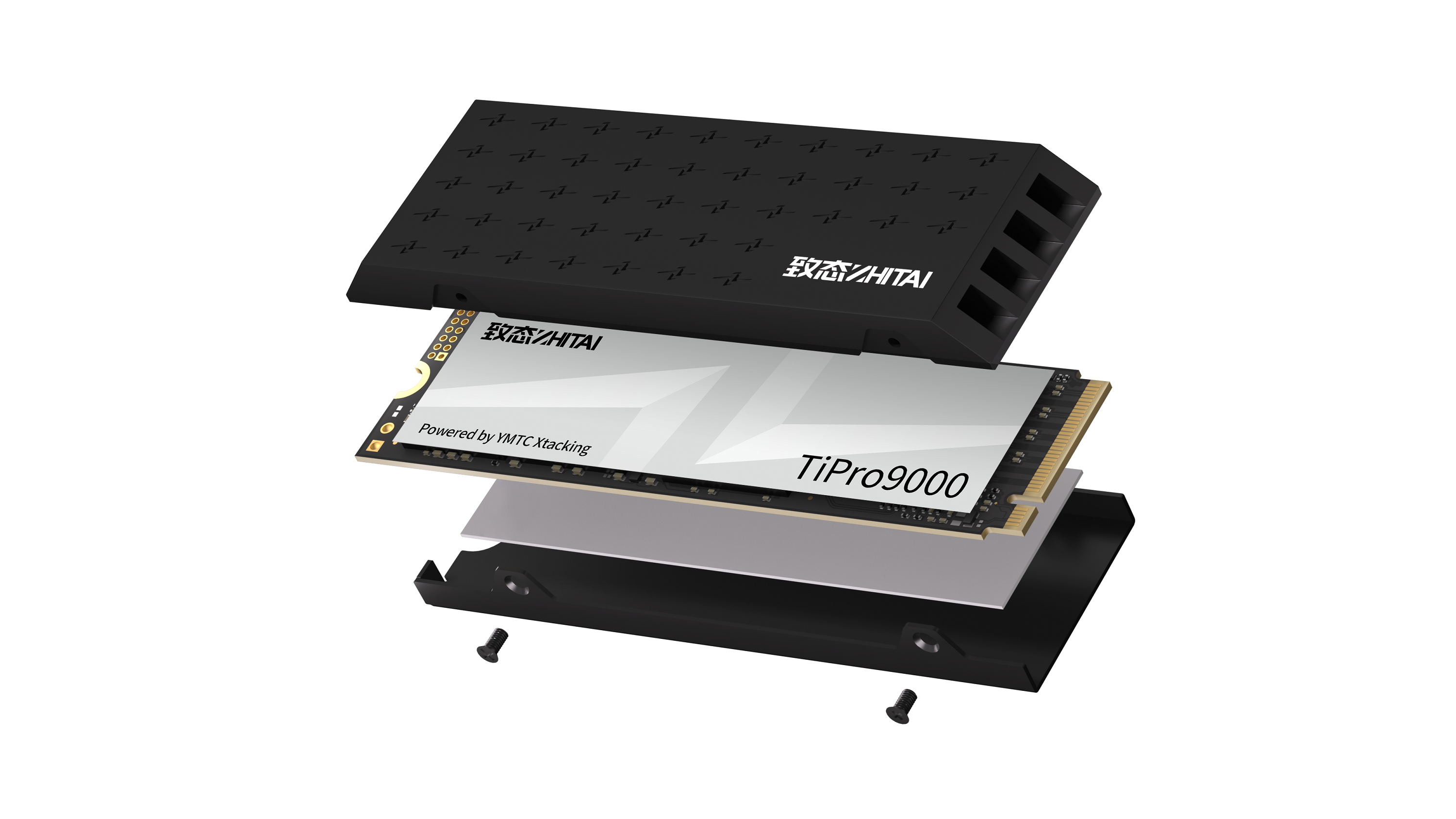

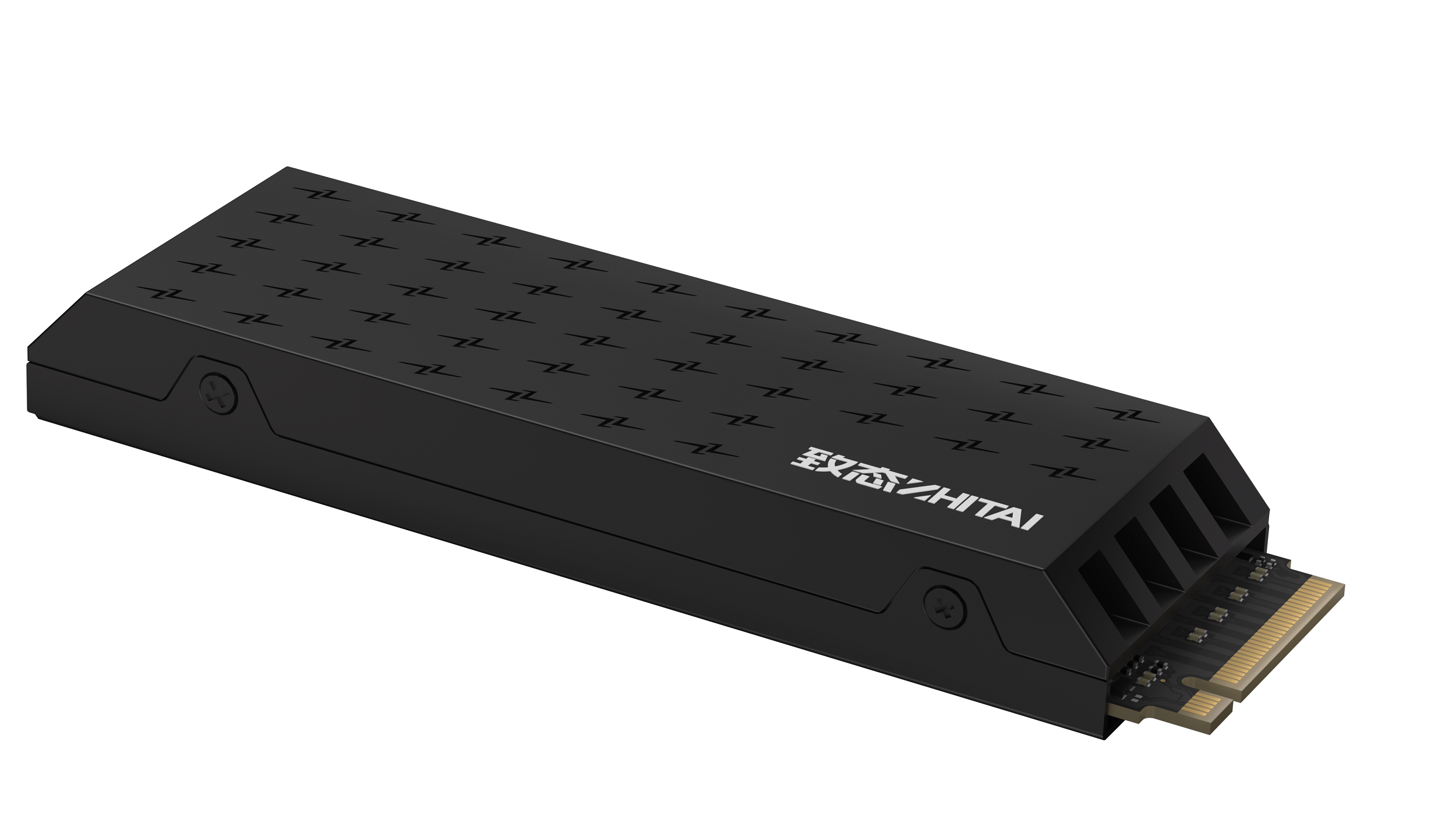

5. Detachable Heatsink, Easy for DIY
The heatsink, crafted from matte aluminum alloy with a light black sandblasted oxidized finish, features a detachable design for versatile customization. Its dual-slope airflow design, combined with the SSD's built-in thermal control technology, effectively enhances cooling efficiency.
6. Intelligent UNIMASTER : Your Personal Data Agent
The tailor-made ZHITAI UNIMASTER SSD management software allows you to quickly view SSD information, monitor its health, and provide secure erase and firmware upgrade functions.
| ZHITAI TiPro9000 SSD Specification Sheet* | |||
| Form factor | M.2 2280 | ||
| 3D NAND Flash | YMTC's next-generation TLC 3D NAND Flash | ||
| Interface | PCIeTM Gen5 ×4 | ||
| Capacity | 1024GB | 2048GB | 4096GB |
Sequential up to (MB/s) | 14,000 | 14,000 | 14,000 |
Sequential up to (MB/s) | 12,500 | 12,500 | 12,500 |
Random Read up to (IOPS) | 1750K | 2000K | 2000K |
Random Write up to (IOPS) | 1800K | 1800K | 1800K |
| MTBF | 1.5 million hours | ||
| Endurance | 600TBW | 1200TBW | 2400TBW |
| Warranty | 5 Years Limited Warranty | ||
Management Software | ZHITAI UNIMASTER | ||
| Encryption | Supports TCG Pyrite protocol | ||
| Package Contents | SSD x1 Heatsink x 1 Toolkit x 1 Instruction manual and installation guide x 1 | ||
①There is a difference between the actual available capacity and the capacity displayed by a computer due to different measurement standards. YMTC using the decimal system: 1GB = 1,000×1,000×1,000 Bytes. Computer operating systems typically use the binary system: 1GB = 1,024×1,024×1,024 Bytes. Therefore, the conversion formula for actual available capacity is: Available Capacity = Labeled Capacity × 93% (1,000³ ÷ 1,024³ = 0.93). The actual available capacity of an SSD may also vary due to formatting, partitioning, and differences between systems.
②Sequential and random performance measurements are based on CrystalDiskMark 8.0.4 on a Windows 11 Pro 64-bit system. The Test System: Motherboard: Motherboard: ROG STRIX Z790-E GAMING WIFI, CPU: Intel i7-13700K, Memory: DDR5 16GB×2.
Performance may vary based on system hardware & configuration. (*Sequential read/write parameters at CDM 1MB Q8T1, Random read/write at CDM 4KB Q32T16).
③5 years or maximum TBW, whichever comes first. For more information about the warranty, please visit the YMTC official website at https://www.ymtc.com/cn/
-
