Storage Capacity
1. Blazing-Fast PCIe 4.0 Performance, Up to 7,000MB/s Read Speed
Enjoy the full power of PCIe Gen4 x4 with sequential read speeds reaching up to 7,000MB/s.
2. YMTC 3D NAND Flash, High-Quality Full-Capacity Design
Utilizing YMTC TLC 3D NAND Flash, available in 512GB, 1,024GB, 2,048GB and 4,096GB capacities. This High-Quality and Full-Capacity Design brings greater value to your data storage.
3. HMB and SLC Cache, Value-Packed Choice
With HMB and advanced SLC caching technology, it ensures high-speed performance and low latency across system boot-up, application and game launches, as well as file saving and data transfers.
4. Single-Sided PCB, Broad Compatibility

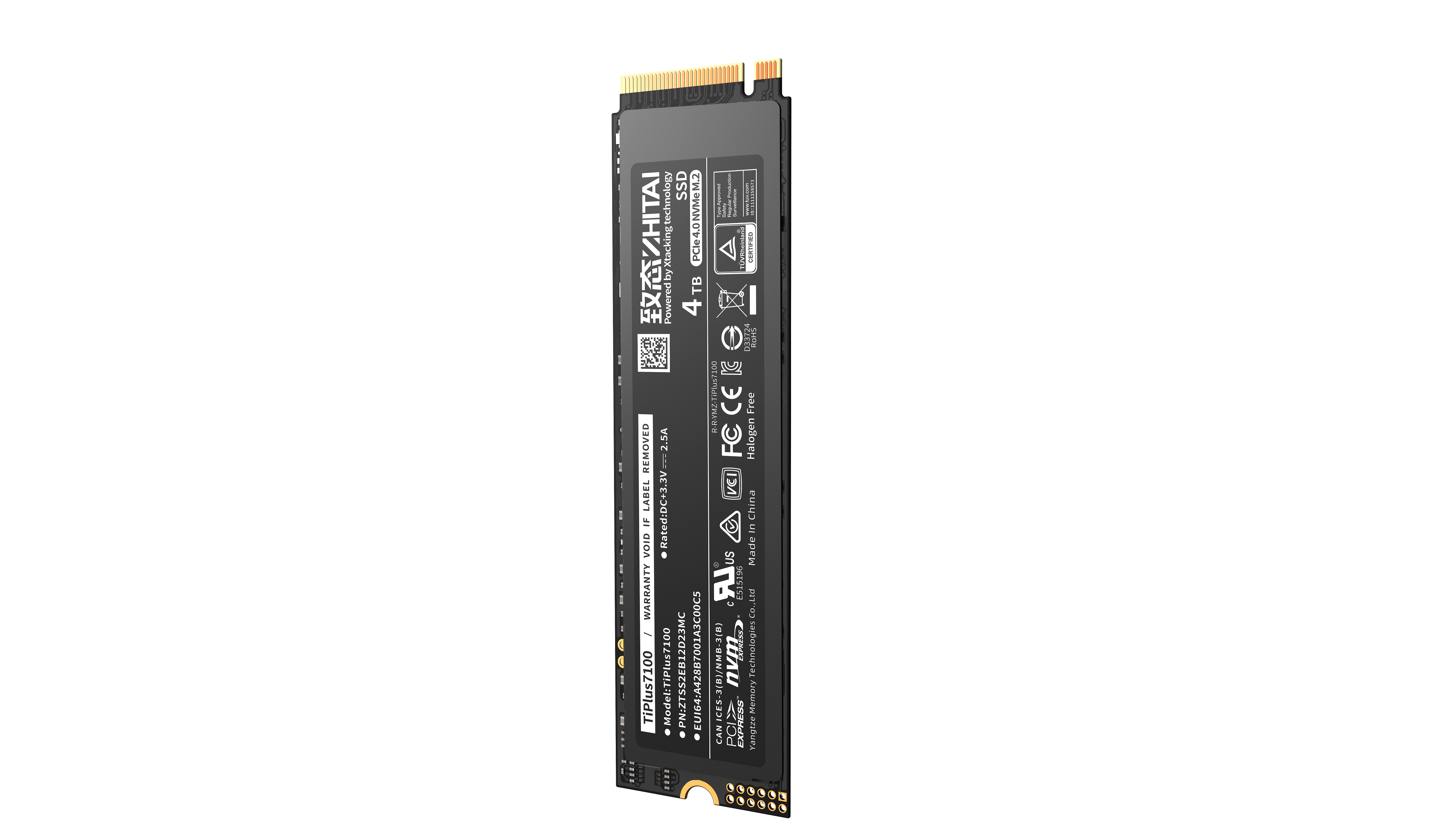

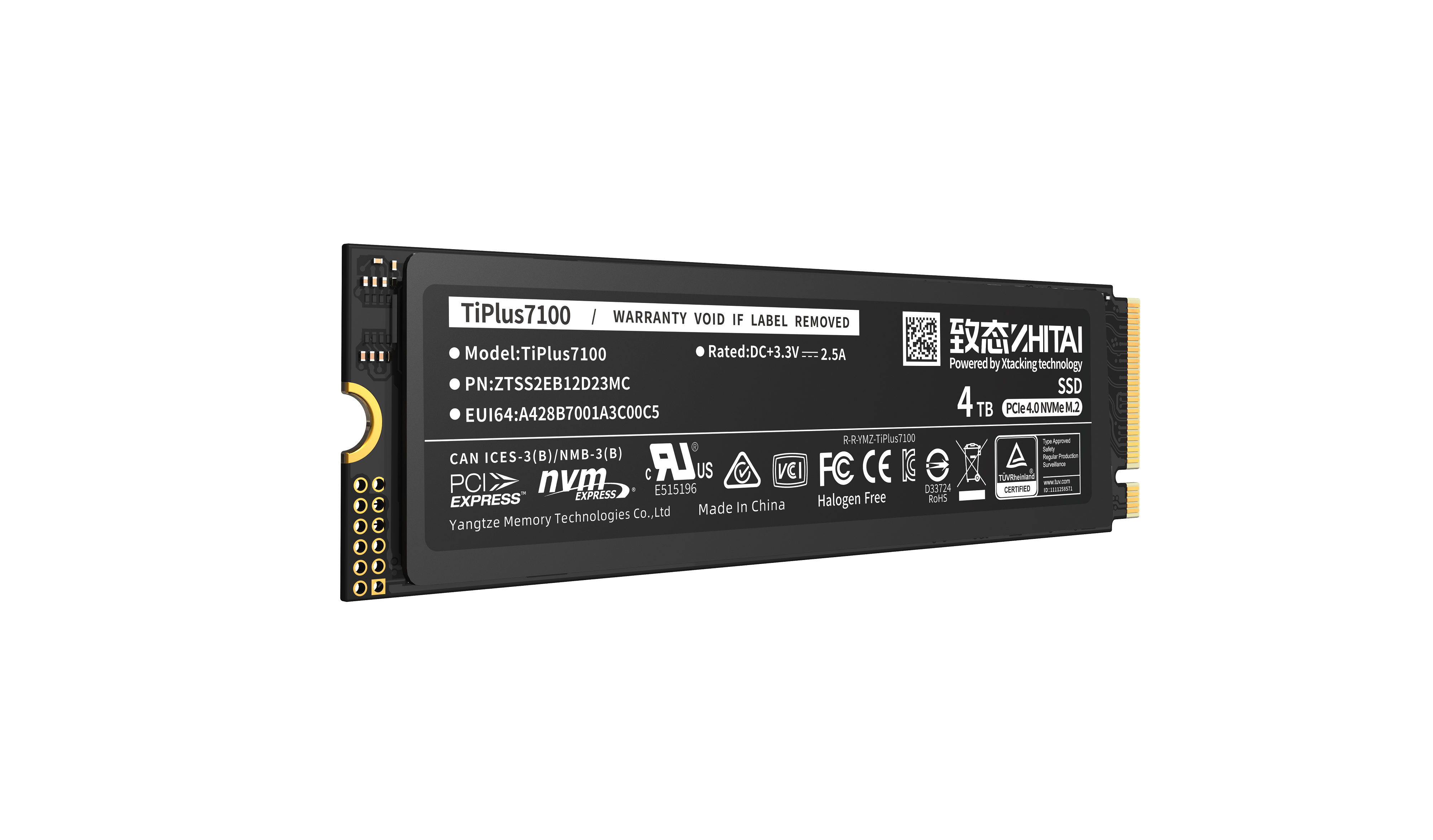

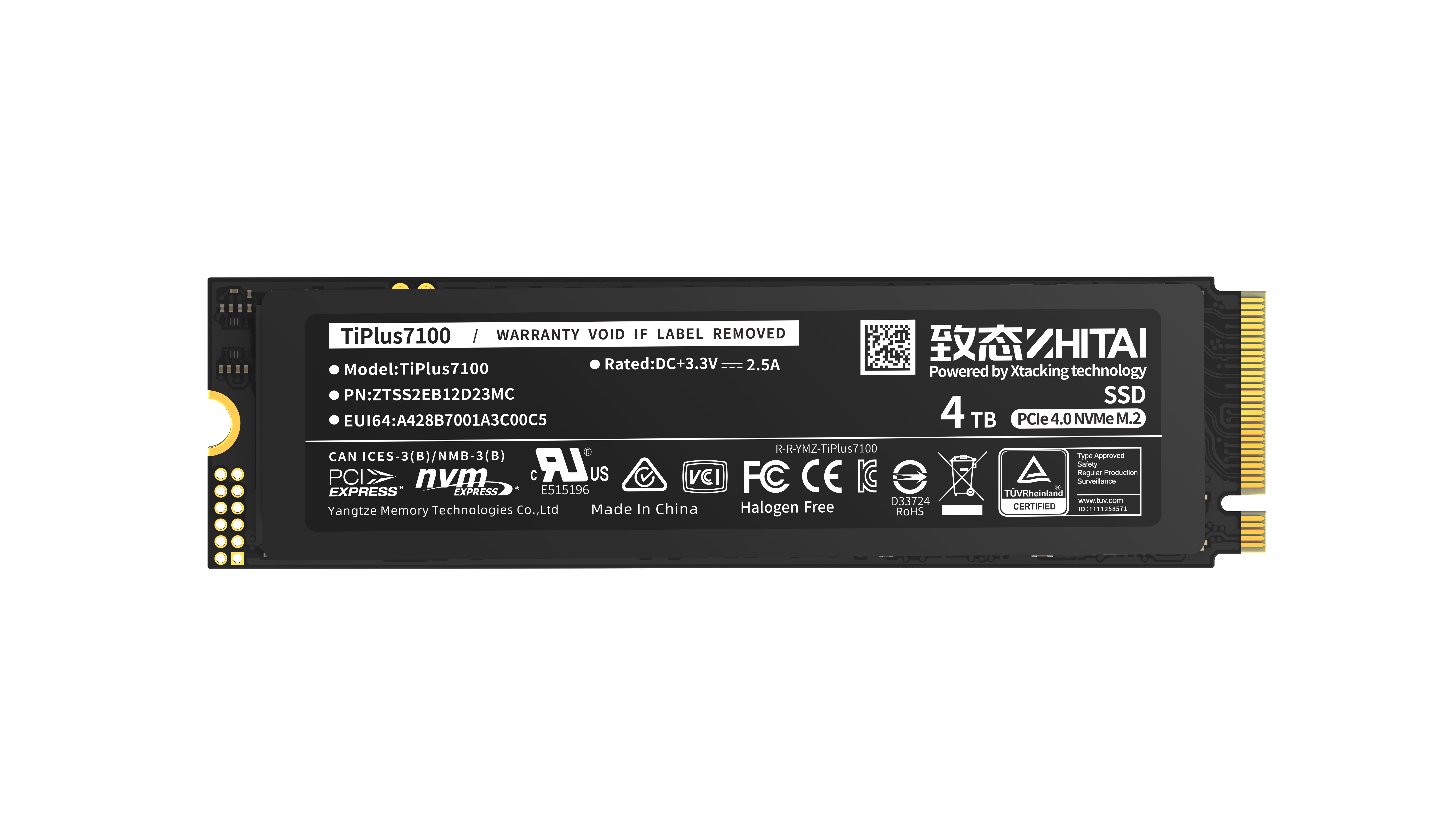

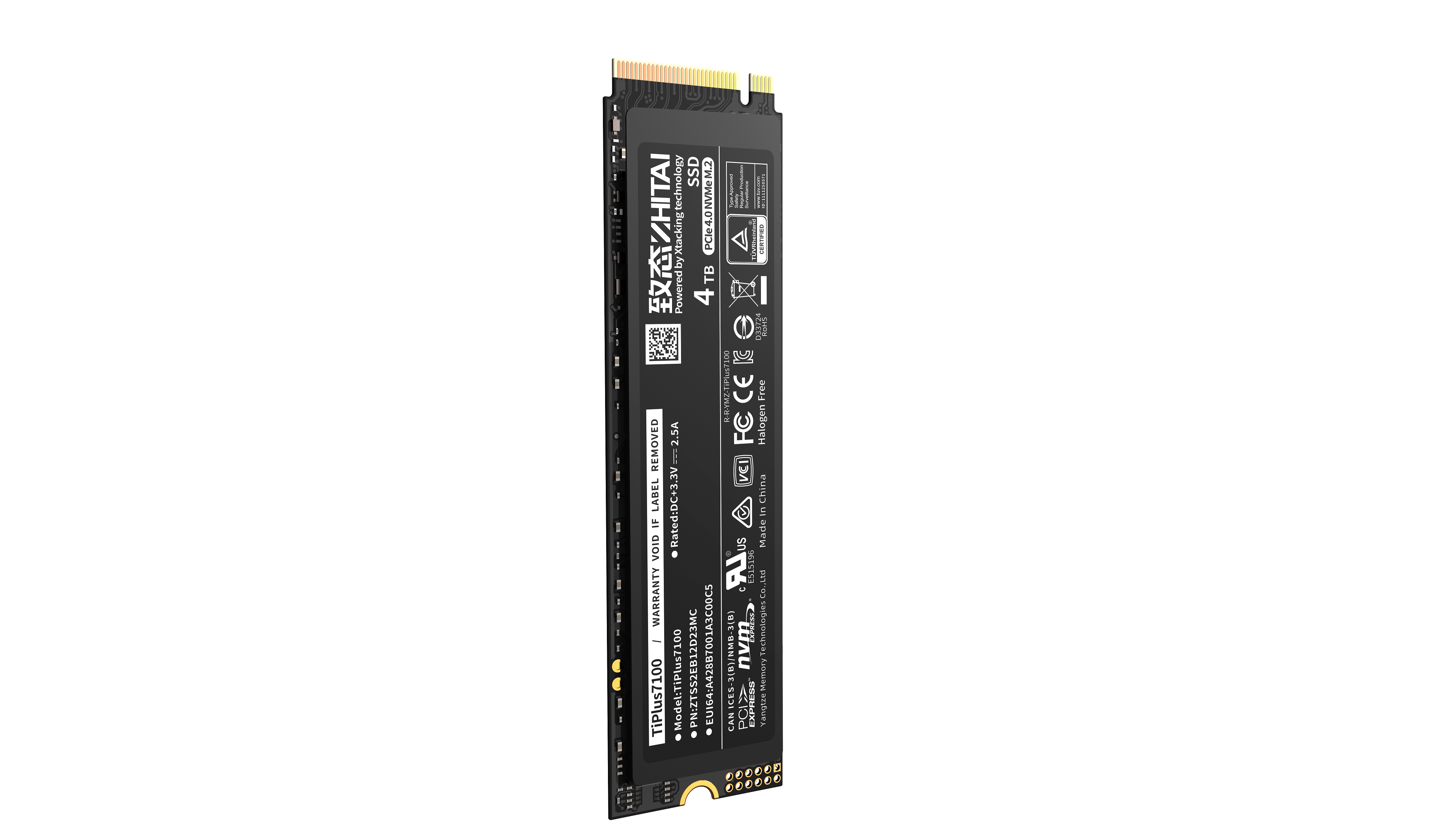

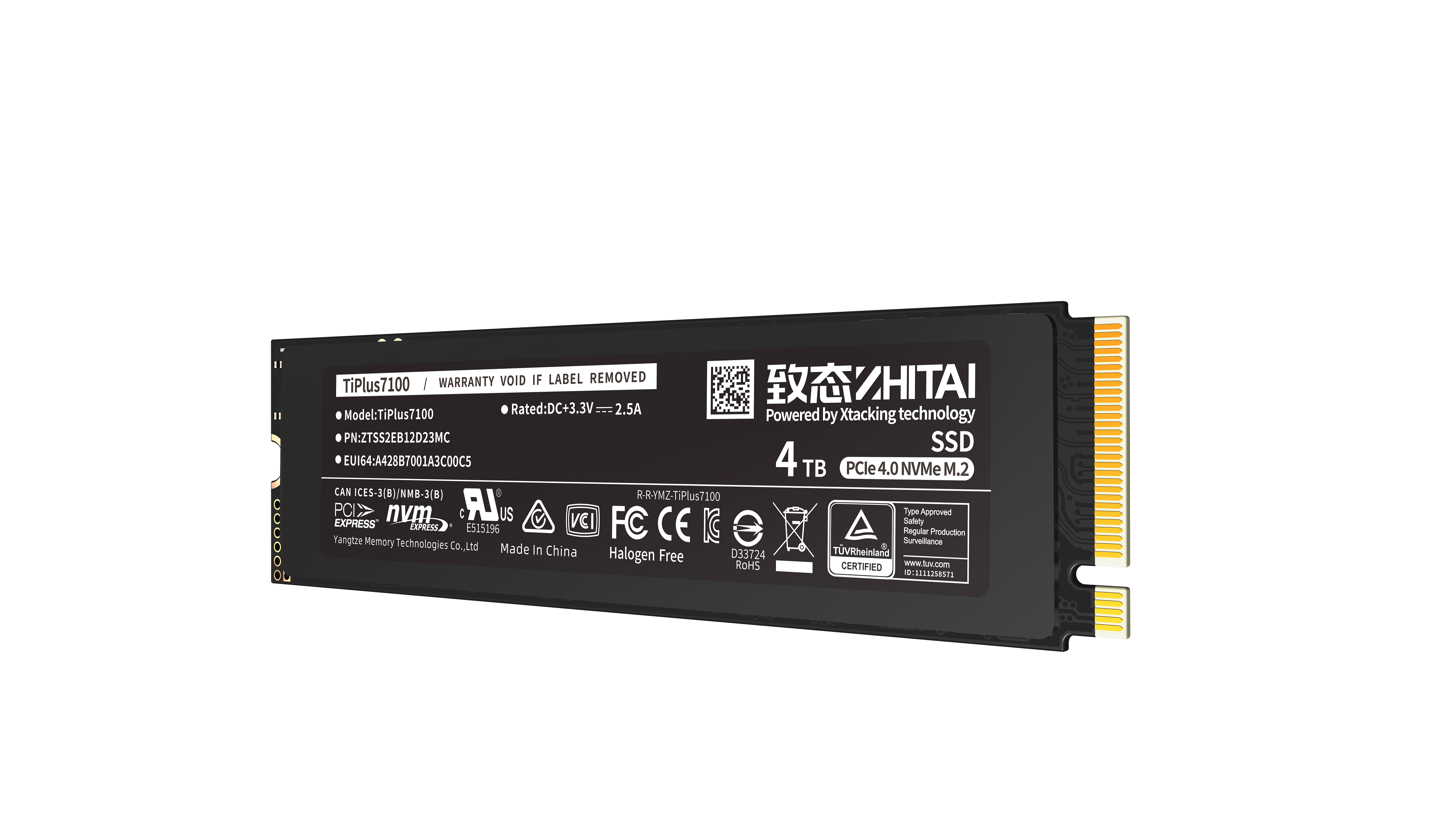

Adopting an M.2 2280 single-sided PCB design for flexible compatibility, it fully supports PCIe Gen4 and most Gen3 systems*, and meets capacity expansion needs for PS5, laptops, and desktops. (*Gen3 systems include most Intel 9th gen and above, AMD 2nd gen Zen architecture and above CPU platforms.
| ZHITAI TiPlus7100 SSD Specification Sheet* | ||||
| Form factor | M.2 2280 | |||
| Capacity | 512GB | 1024GB | 2048GB | 4096GB |
| Interface | PCleTM Gen4 x4，NVMeTM1.4 | NVMeTM 2.0 | ||
| Sequential Read up to | 7000MB/s | 7000MB/s | 7000MB/s | 7000MB/s |
| Sequential Write up to | 3600MB/s | 6000MB/s | 6000MB/s | 6000MB/s |
| Random Read up to (4K) | 800K IOPS | 900K IOPS | 900K IOPS | 900K IOPS |
| Random Write up to (4K) | 600K IOPS | 700K IOPS | 700K IOPS | 800K IOPS |
| MTBF | 1.5 million hours | |||
| Endurance | 300TBW | 600TBW | 1200TBW | 2400TBW |
| Warranty | 5 Years Limited Warranty | |||
| Management Software | ZHITAI UNIMASTER | |||
①There is a difference between the actual available capacity and the capacity displayed by a computer due to different measurement standards. YMTC using the decimal system: 1GB = 1,000×1,000×1,000 Bytes. Computer operating systems typically use the binary system: 1GB = 1,024×1,024×1,024 Bytes. Therefore, the conversion formula for actual available capacity is: Available Capacity = Labeled Capacity × 93% (1,000³ ÷ 1,024³ = 0.93). The actual available capacity of an SSD may also vary due to formatting, partitioning, and differences between systems.
②Sequential and random performance measurements are based on CrystalDiskMark 8.0.1 on Windows 10 Pro 64 bit 21H2 system. The Test System: Motherboard: ASRock Z690 EXTREME, CPU: Intel i7-12700KF 12-Core CPU@3.61GHz, Memory: DDR4 2666MHz 8GB. Performance may vary based on system hardware & configuration. (*QD32T1 for sequential R/W; QD32T16 for random R/W)
③Five years or maximum TBW, whichever comes first. For more information about the warranty, please visit https://www.ymtc.com/cn/
-
