Gen2 TLC 3D NAND Flash Memory
X1-9050 is supported by mainstream controllers in the industry and can be widely used in the development of consumer, enterprise, and mobile storage products.
Storage Capacity

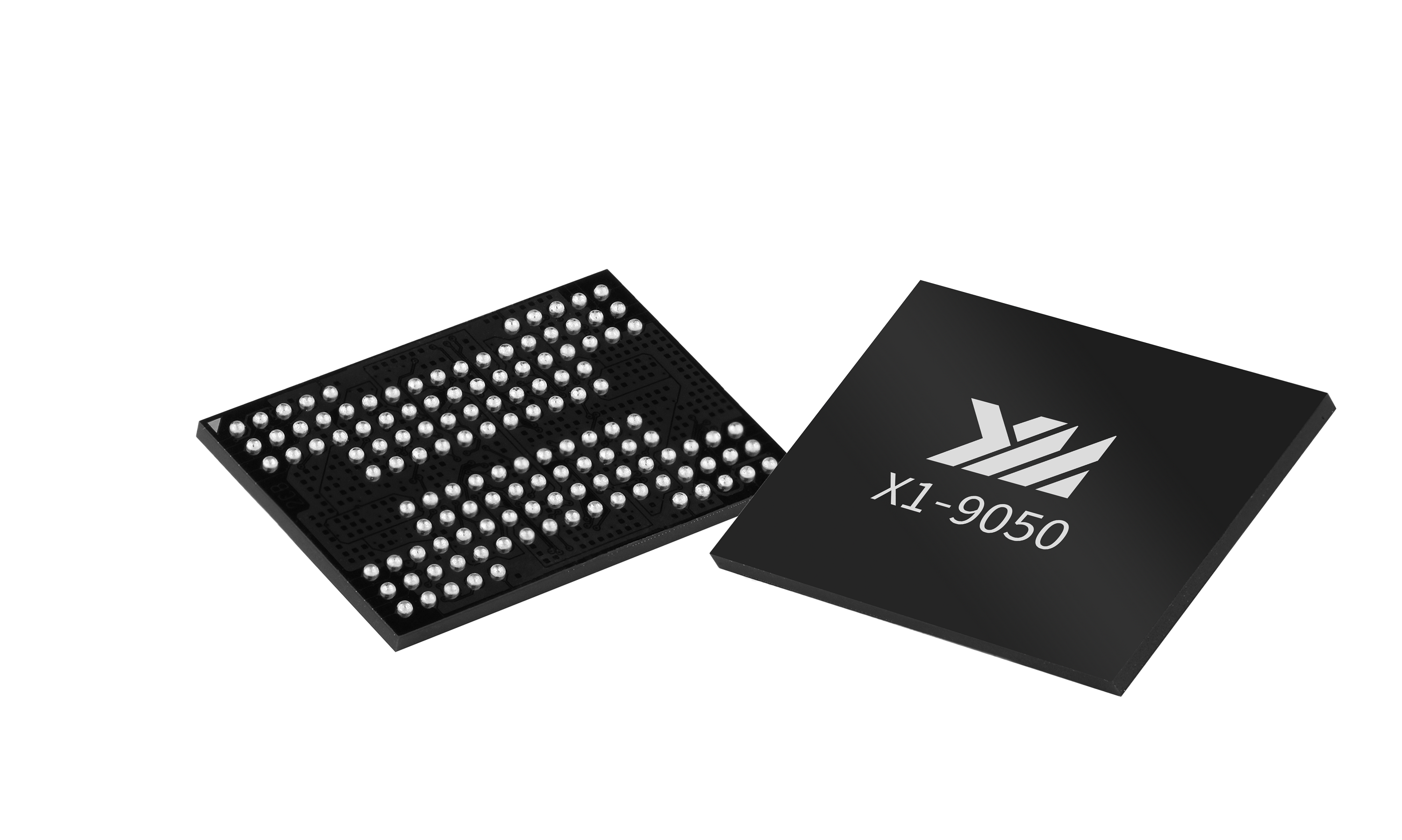

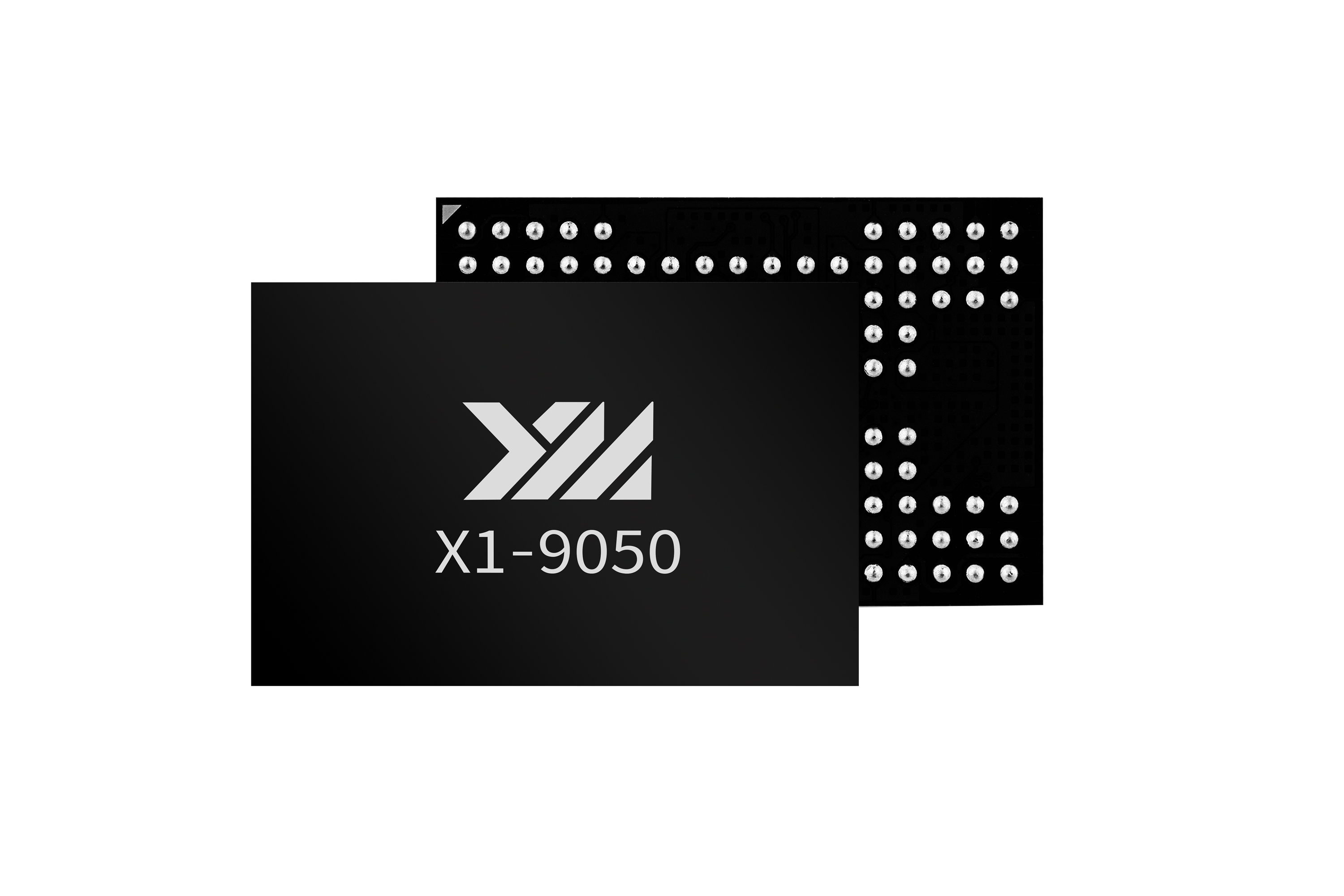

X1-9050 is the 2nd-generation of YMTC 3D NAND flash memory products. It was put into small-scale mass production in August 2019. It is YMTC's first product designed and processed with the Xtacking® architecture to be put into mass production. The capacity is 256GB, and the maximum I/O speed can reach 800MT/s.
X1-9050 is supported by mainstream controllers in the industry and can be widely used in the development of consumer, enterprise, and mobile storage products.
*Note: Part number, data, performance, specifications, and other information are for reference only. Please refer to the actual product in all cases.
| Part No. | X1-9050 |
| Product Architecture | Xtacking® |
| Memory Type | TLC |
| Storage Capacity | 256Gb |
| NAND Flash Memory Interface | ONFI 4.0 |
| Maximum IO speed (MT/s) | 800 |
| Bus Width | X8 |
| VCC(V) | 2.5/3.3 |
| VCCQ(V) | 1.8/1.2 |
| Operating Temperatures (°C) | -20~85 |
YMTC reserves the right to adjust the above test specifications, and test environment, and update the relevant test results according to the changes in industry development.
