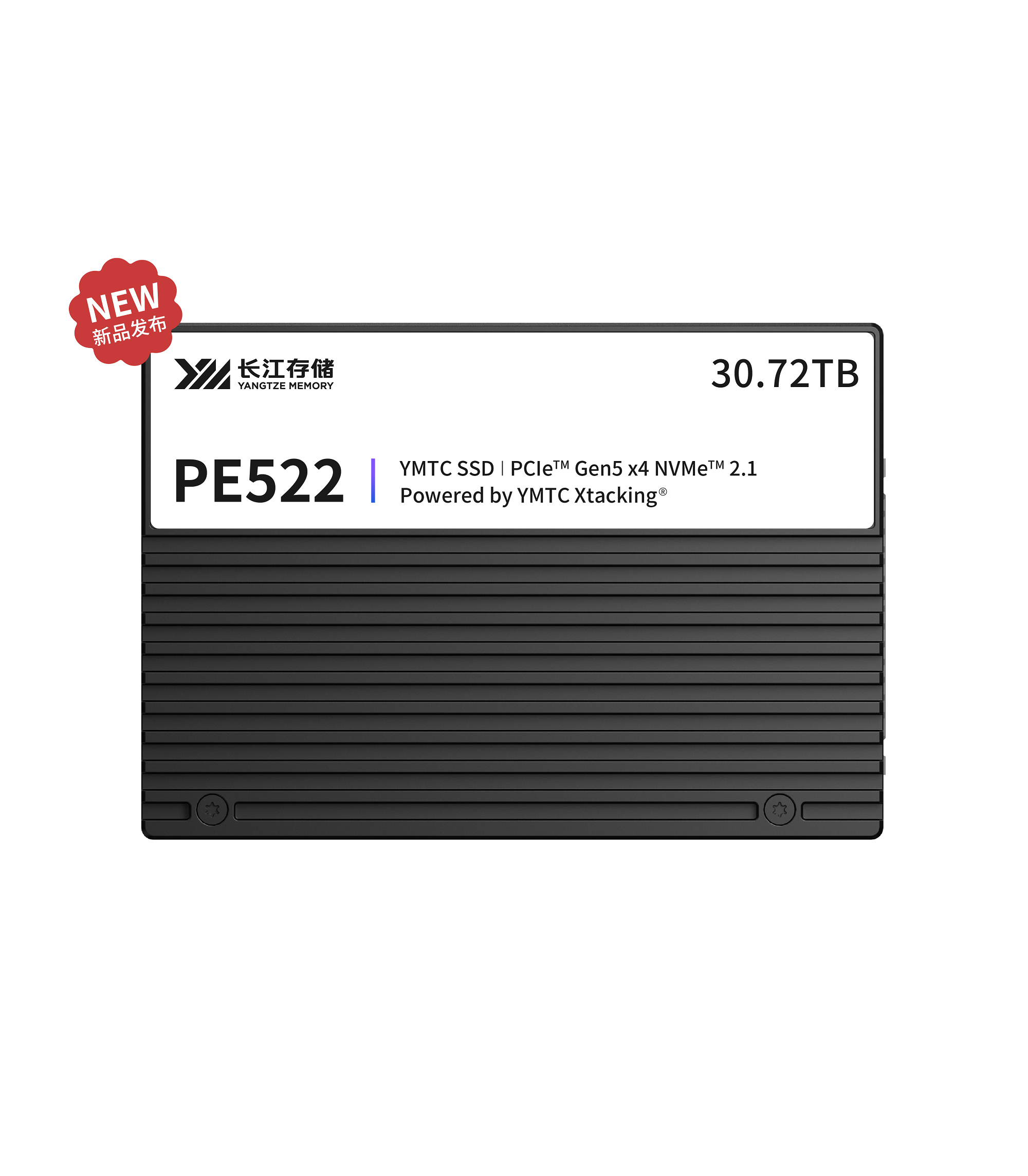

PCIe™ 5.0 NVMe™ Enterprise SSD
Storage Capacity
-
Tel.+86 27 65320000
-
E-mail:YMTC@ymtc.com
Industry-Leading Performance for Accelerated Inference
The PE522 features up to 3,100K/1,200K random read/write IOPS, 14.2GB/s sequential read bandwidth, and an ultra-low 5μs latency, specifically optimized for KV Cache offloading and reloading in Large Language Model (LLM) inference. By minimizing I/O wait times and reducing Time to First Token (TTFT), the PE522 significantly boosts token-per-second throughput, ensuring seamless, real-time inference.
Setting a New Benchmark with Up to 4 DWPD Endurance
Built with premium 3D NAND flash rated for 12,000 P/E cycles and driven by sophisticated enterprise firmware algorithms, the PE522 offers an exceptional endurance rating of up to 4 DWPD. Compared to previous generations*, this represents a 33% to 100% leap in endurance, ensuring maximum uptime and data integrity for high-performance clusters.
Million-Class IOPS/W Energy Efficiency to Relieve Cluster Thermal Stress
Combining an outstanding energy efficiency of up to 1,000,000 IOPS/W, a sub-25W power envelope, and advanced thermal control, the PE522 significantly reduces server cooling and power operational expenses (OPEX). It empowers computing nodes to pack higher compute density within a limited power budget, maximizing the total value and compute-per-dollar of individual servers.
Versatile Configurations Tailored to Diverse Workloads
The PE522 covers both Read-Intensive (up to 30.72TB) and Mixed-Use (up to 25.6TB) configurations. The read-intensive models drive ultra-high storage density for Content Delivery Networks (CDN) and data analytics, while the mixed-use models are purpose-built to accelerate core databases, virtualization and Hyper-Converged Infrastructure (HCI)—providing the operational flexibility needed to ensure efficient scalability and stable performance across diverse workloads.
| Form Factor | U.2 15mm | ||||||||
Interface & Protocol | PCIe™ Gen5 x4, NVMe™ 2.0 | ||||||||
| Capacity (TB) | 3.84 | 7.68 | 15.36 | 30.72 | 3.2 | 6.4 | 12.8 | 25.6 | |
| Performance | Sequential Read up to (MB/s) | 14,200 | 14,200 | 14,200 | 14,200 | 14,200 | 14,200 | 14,200 | 14,200 |
Sequential Write up to (MB/s) | 9,200 | 11,000 | 11,500 | 11,500 | 9,200 | 11,000 | 11,500 | 11,500 | |
Random Read up to (IOPS)(K) | 3,100 | 3,100 | 3,100 | 3,100 | 3,100 | 3,100 | 3,100 | 3,100 | |
Random Write up to (IOPS)(K) | 550 | 550 | 600 | 600 | 1,000 | 1,000 | 1,200 | 1,200 | |
4K Random Read Latency (μs) | 51 | 52 | 53 | 53 | 51 | 52 | 52 | 52 | |
4K Random Write Latency (μs) | 5 | 5 | |||||||
| Power | Idle（W） | ≤6 | ≤6 | ||||||
| Active (W) | ＜18 | ＜20 | ＜25 | ＜23 | ＜18 | ＜20 | ＜25 | ＜23 | |
| Reliability | UBER | <1E-18 | <1E-18 | ||||||
| MTBF(H) | 2.5 Million | 2.5 Million | |||||||
DWPD (RW workload) | 2* | 4* | |||||||
DR@EOL (power off) | 3 Months @ 40℃ | ||||||||
Physical Characteristics | Dimensions | 15.00mm x 69.85mm x 100.20mm | |||||||
Vibration Rating | 2.17 GRMS, 5-700Hz(Operation); 3.13 GRMS, 5-800Hz(Non-operation) | ||||||||
| Shock Rating | 1,000G@0.5ms | ||||||||
| Environment | Operating Temperatures | 0°C to 77°C | |||||||
| Features | PLP, LDPC, ETEP, Hot Plug, TRIM, FFU, SMART, Thermal Throttle, Power Management, VSS | ||||||||
Previous generation refers to YMTC PE321. The above performance is verified with YMTC’s internal test platform. Actual results may vary among different host devices and testing conditions. 1MB = 1000KB, 1GB = 1000MB, 1TB = 1000GB. Total accessible capacity on storage devices may also vary depending on operating environment.
