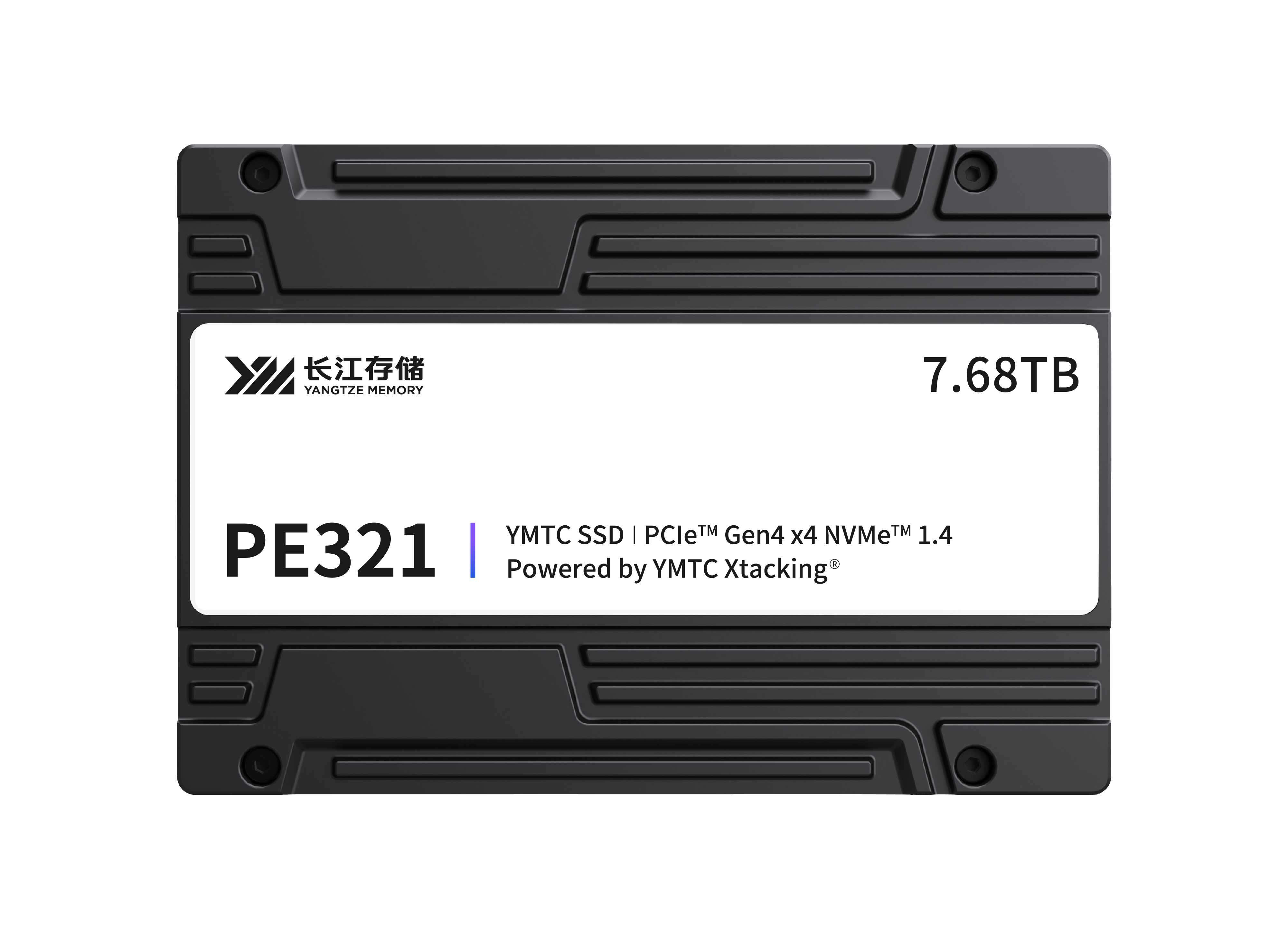

PCIe™ 4.0 NVMe™ Enterprise SSD
Storage Capacity
-
Tel.+86 27 65320000
-
E-mail:YMTC@ymtc.com
Key Features
Higher Performance
The PE321 enterprise SSD delivers outstanding performance, achieving sequential read/write speeds of up to 7400MB/s and 7000MB/s, respectively, along with random IOPS of 1750K/640K. These industry-leading specifications enable seamless and efficient operations in servers, data centers, and other demanding applications.
Optimized Power Efficiency
With a maximum operating power consumption under 19W and less than 6.5W in standby mode, the PE321 enterprise SSD achieves an outstanding IOPS/W ratio that significantly reduces total cost of ownership (TCO).
Ultra-Low Latency
The PE321 enterprise SSD leverages a high-performance architecture, delivering 4K random read/write latency that outperforms industry averages, accelerates response times and enhances operational efficiency.
Flexible Choices for Multiple Workload
The PE321 enterprise SSD offers a wide range of capacities to meet diverse storage workloads and application needs:
• Read-intensive: 1.92TB, 3.84TB, 7.68TB
• Mixed-use: 1.6TB, 3.2TB, 6.4TB
Unmatched Durability
Built on YMTC’s Xtacking® 3D NAND technology, the PE321 enterprise SSD delivers 3 DWPD for capacities of 1.6TB, 3.2TB, and 6.4TB, ensuring secure and reliable user experience.
Xtacking® Technology
The PE321 enterprise SSD incorporates YMTC X2-9060 eNAND based on Xtacking®2.0 technology. This offers superior durability high-speed performance that ensures seamless 24/7 operation for enterprise servers and data centers.
| Product | YMTC PE321 SSD | |||
| Form Factor | 2.5” | |||
| Interface | PCIe™ 4.0 NVMe™ 1.4 | |||
Performance | Capacity | 1.6TB/1.92TB | 3.2TB/3.84TB | 6.4TB/7.68TB |
Sequential Read (MB/s) | 7,400/7,400 | 7,400/7,400 | 7,400/7,400 | |
Sequential Write (MB/s) | 2,600/2,600 | 5,200/5,200 | 7,000/7,000 | |
Random Read 4K (K IOPS) | 820/820 | 1,460/1,460 | 1,750/1,750 | |
Random Write 4K (K IOPS) | 280/130 | 550/280 | 640/340 | |
Power Consumption | Non-operating(W) | <6 | <6.5 | <6.5 |
| Operating(W) | <11.5 | <15 | <19 | |
Reliability | UBER | <1E-17 | ||
| MTBF(H) | 2 Million | |||
| DWPD | 3/1 | |||
Physical Characteristics | Size | 15.00mm x 69.85mm × 100.20mm | ||
| Weight | 120± 10g | |||
| Operating Vibration | 2.17 GRMS, 5-700Hz | |||
| Non-operating Vibration | 3.1 GRMS, 5-800Hz | |||
| Shock | 1,500 G Peak / 0.5msec | |||
Environment | Operating Temperature | 0°C ~ 70°C | ||
Function | Multi-Namespace, PLP, Thermal Throttle, TRIM, SMART, Flexible Power Management, E2E | |||
Authentication | PCIe-SIG, RoHS(China), BSMI, WEEE, RoHS(EU) CE, FCC, Halogen Free, UL, REACH | |||
Notes:
1.All data in this document are based on YMTC’s in-house test；
2.The performance is subject to differences caused by various test set-ups and firmware versions;
3.The tests are conducted in stable operations of the device in accordance with the SNIA SSS-PTS-E standards;
4. 1 MB = 1000 KB, 1 GB = 1000 MB, 1 TB = 1000 GB. Total accessible capacity on storage devices may also vary depending on operating environment;
5. YMTC reserves the right to adjust the above test specifications, and test environment, and update the relevant test results according to the changes in industry development..
