PCle™ 4.0 NVMe™ Client SSD
Storage Capacity
-
Tel.+86 27 65320000
-
E-mail:YMTC@ymtc.com
By utilizing the I/O speed of up to 2400MT/s powered by YMTC Xtacking® 3.0 3D NAND flash memory technology, the PC411 achieves maximum bandwidth on the PCIe Gen4 x4 interface with a 4-channel solution, to increase user experiences for the most demanding client applications in professional, gaming, and content creation.
Compared to conventional 8-channel solutions, the PC411 reduces channel count by half, leading to a 25% reduction in power consumption with lower heat generation. Additionally, the adoption of Host Memory Buffer (HMB) technology enables the PC411 to offer a high cost-effectiveness option for customers and end-users.
Features
Extraordinary performance: Up to maximum bandwidth of PCIe Gen4x4 interface
With maximum sequential read speed of 7000MB/s and sequential write speed of 6000MB/s(1TB capacity and above), YMTC PC411 delivers extraordinary performance up to the maximum bandwidth of PCIe Gen4x4 interface.
Evolved Power-efficiency
The 4-channel design helps to achieves ultra low power consumption to as low as 4W (4.5W for 2TB capacity), which brings brilliant power efficiency for longer battery life and lower heat generation for better user experience.
Flexible Form Factors

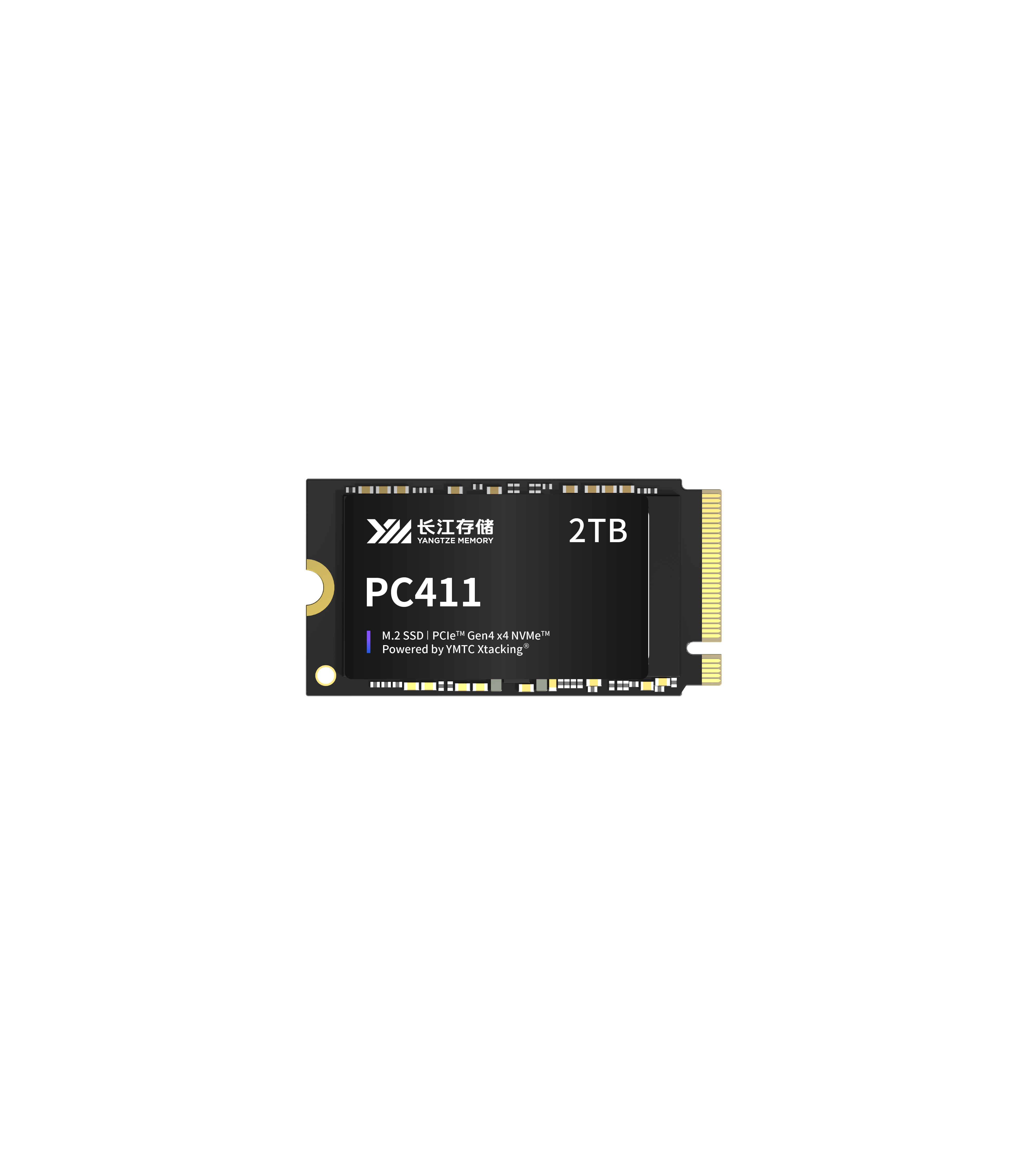

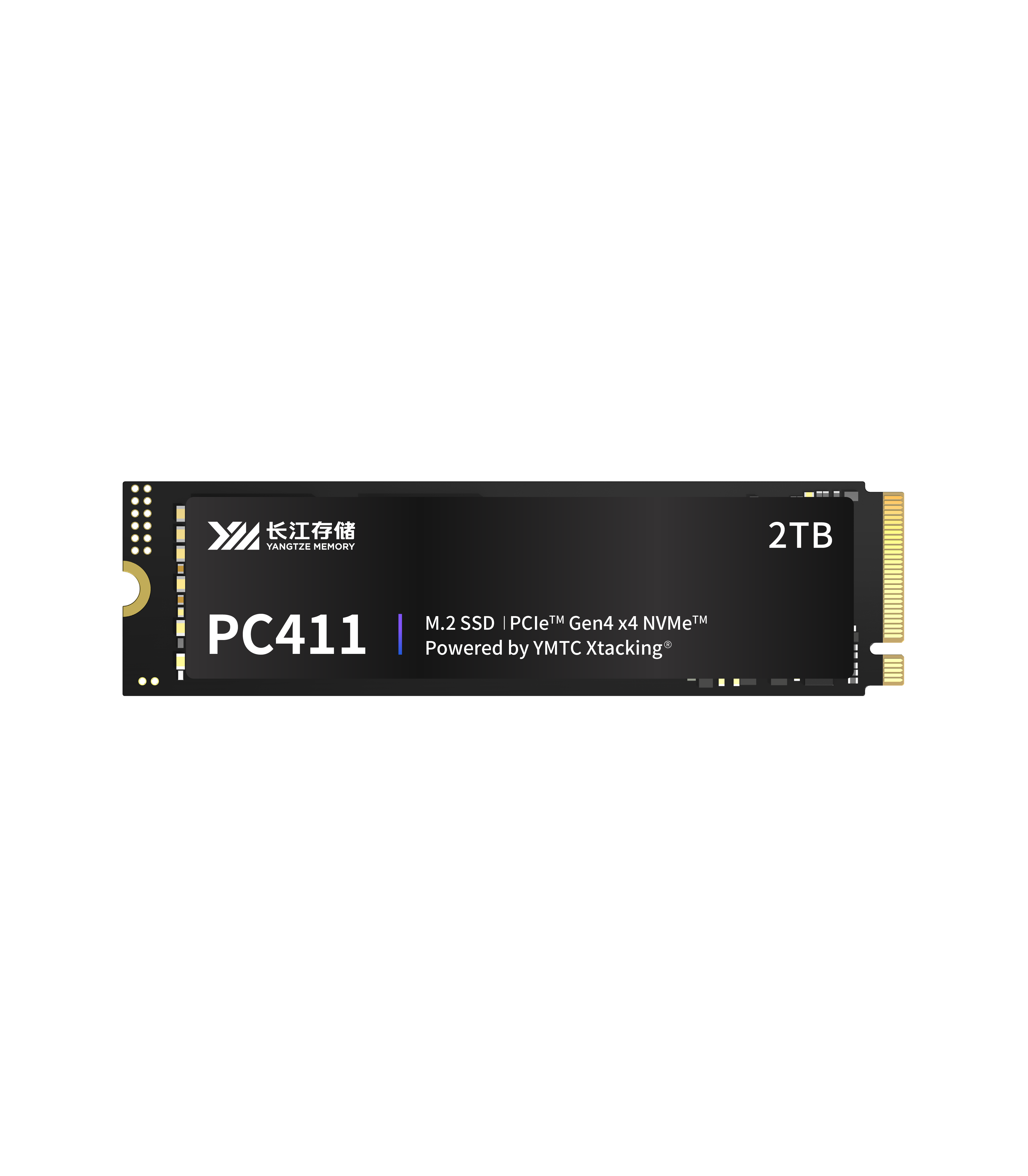

Multi-form factors (2242/2280) and capacities (512GB/1TB/2TB) on a single-sided PCB, designed to meet all your needs.
Cost-effective
PC411 adopts DRAM-Less (DL) design and Host Memory Buffer (HMB） feature, saving cost for customers and users.
Innovative Flash Memory Technology
Based on YMTC's Xtacking 3.0 3D NAND flash memory technology, It brings the I/O speed improvements of 1.5x compared to the previous generation, reaching 2400MT/s, significantly enhancing application responsiveness.
| Form Factor | M.2 2242/2280 | |||
| Interface | PCIe™ Gen4 x4, NVMe™1.4 | |||
| Capacity1 | 512GB | 1TB | 2TB | |
| Performance2 | Sequential Read up to (MB/s) | 6800 | 7000 | 7000 |
| Sequential Write up to (MB/s) | 5200 | 6000 | 6000 | |
| Random Read up to (IOPS)(K) | 750 | 850 | 850 | |
| Random Write up to (IOPS)(K) | 700 | 700 | 700 | |
| Power | L1.2 (typ, mW) | <2.5 | <2.5 | <2.5 |
| Active (W) | <5 | <5 | <5 | |
| Reliability | UBER | <1E-16 | ||
| MTBF | Up to 2.0 Million Hours | |||
Endurance(TBW) | 300 | 600 | 1200 | |
| Mechanical | Dimension & Weight | 2242, 2.3mm x 22.00mm x 42.0mm @ 4±1g 2280, 2.3mm x 22.00mm x 80.0mm @ 6±1g | ||
| Environmental | Operating Temperature | 0~70℃ | ||
| Features | TCG-Pyrite/Opal3, non-SED, PLP, Thermal Throttle, SMBus, SMART, Power Management, FFU | |||
| Certifications | PCIe-SIG, WHLK,UL, CE, FCC, BSMI, RoHS, Halogen Free, China RoHS, WEEE, KC, VCCI, Tuv, RCM | |||
Notes:
1.1MB = 1000KB, 1GB = 1000MB, 1TB = 1000GB. Total accessible capacity on storage devices may also vary depending on operating environment.
2. Performance may vary depending on the specific hardware and software configuration used.
3. OPAL is optional. Please contact YMTC for more information.
4. The data above is based on YMTC's in-house testing.
