PCIe™ 5.0 NVMe™ Enterprise SSD
Storage Capacity
-
Tel.+86 27 65320000
-
E-mail:YMTC@ymtc.com

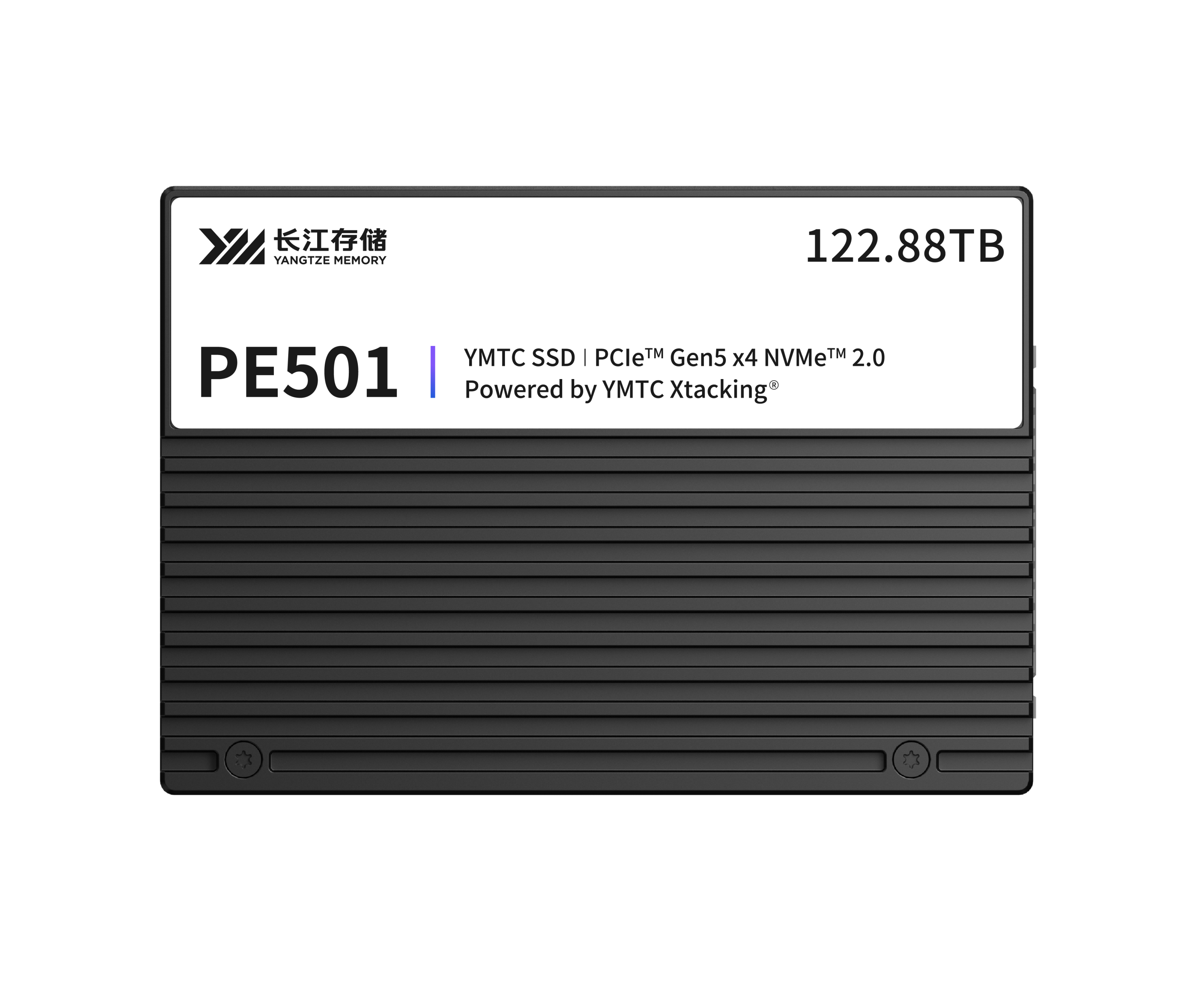

Ultra-High Density: Scaling AI Infrastructure
The PE501 delivers a monumental 122.88TB capacity, enabling a staggering 3PB per 2U chassis. By slashing the physical footprint by 90% and PCIe lane usage by 75%, it outpaces TLC SSDs by 4x and HDDs by 9x in storage density.
Elite Performance: Eliminating GPU Starvation
The PE501 delivers sequential read of 14,200 MB/s, 4K random read performance of 3,350K IOPS, and ultra-low read latency of 90μs—empowering infrastructures to effortlessly handle massive data torrents and high-concurrency AI workloads while maximizing compute utilization.
Proven Endurance: Streamlining Operations
The PE501 incorporates X4-6080 3D NAND with an endurance rating of 5,000 P/E cycles, meeting rigorous industry standards for component quality. Building upon this premium hardware foundation, the PE501 achieves a sustained 0.6 DWPD, translating to 2x the lifespan of mainstream QLC solutions and 30x that of HDDs. This significantly reduces replacement frequency and operational strain, ensuring the stability of mission-critical AI initiatives.
Superior Efficiency: Driving Green Computing
The PE501 sets a new benchmark for Performance-per-Watt, with read efficiency at 700 MB/s/W and write efficiency at 167 MB/s/W—outperforming HDDs by 19x and 4x, respectively. We significantly slash power-per-unit-of-compute to drive energy savings, boost your enterprise edge, and fulfill the commitment to a sustainable green economy.
Ironclad Reliability: Safeguarding Data Continuity
Delivering TLC-grade reliability, the PE501 features a 2.5 million-hour MTBF and an UBER of 10⁻¹⁸, with a 3-month data retention capability at end-of-life (DR@EOL, 40°C). With integrated Secure Boot and Firmware Integrity Verification, it guarantees uncompromised data integrity across AI training, inference, CDN, and OSS—providing a rock-solid foundation for the most vital enterprise data assets.
| Form Factor | U.2 15mm | |||
| Interface & Protocol | PCIe™ Gen5 x4, NVMe™ 2.0 | |||
| Capacity | 30.72TB | 61.44TB | 122.88TB | |
| Performance | Sequential Read up to (MB/s) | 14,200 | 14,200 | 13,800 |
| Sequential Write up to (MB/s) | 4,000 | 4,000 | 4,000 | |
| Random Read up to (IOPS)(K) | 3,350 | 3,350 | 2,850 | |
| Random Write up to (IOPS)(K) | 50（16K） | 50（16K） | 50（16K） | |
| 4K Random Read Latency (μs) | 90 | |||
| 4K Random Write Latency (μs) | 8 | |||
| Power | Idle（W） | ≤6 | ||
| Active (W) | ＜24 | ＜25 | ＜25 | |
| Reliability | UBER | <1E-18 | ||
| MTBF(H) | 2.5 Million | |||
DWPD(RW workload) | 0.6 | 0.6 | 0.64 | |
| DR@EOL(power off) | 3 Months @ 40℃ | |||
| Physical Characteristics | Dimensions | 15.00mm x 69.85mm x 100.20mm | ||
| Vibration Rating | 2.17 GRMS, 5-700Hz(Operation); 3.1 GRMS, 5-800Hz(Non-operation) | |||
| Shock Rating | 1,000G@0.5ms | |||
| Environment | Operating Temperatures | 0°C to 70°C | ||
| Features | PLP, Hot Plug, Thermal Throttle, TRIM, SMART, Power Management, E2EDP, DST, Sanitize, Telemetry | |||
| Certifications | PCIe-SIG, NVME-Express, RoHS(China, EU), CE, FCC, UL | |||
The above performance is verified with YMTC’s internal test platform. Actual results may vary among different host devices and testing conditions. 1MB = 1000KB, 1GB = 1000MB, 1TB = 1000GB. Total accessible capacity on storage devices may also vary depending on operating environment.
